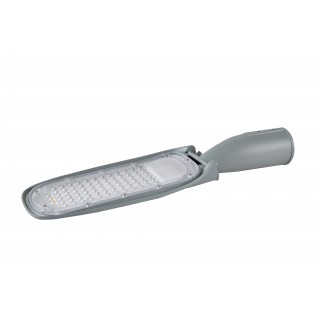

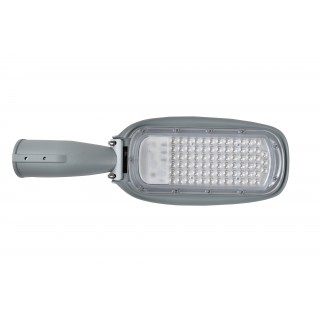

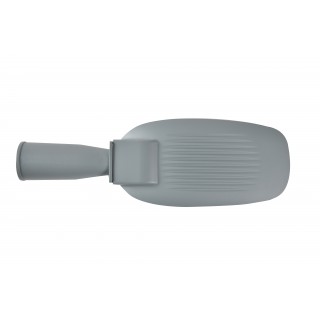

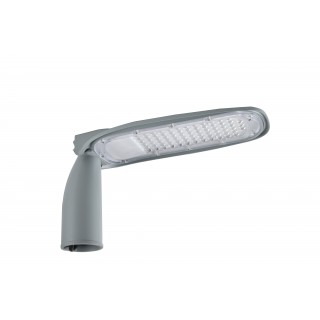

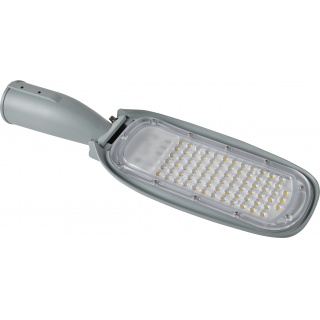

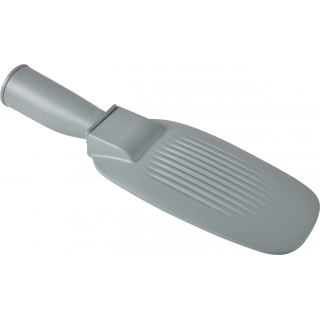

Home » PRODUCTS » LED OUTDOOR LIGHTING » LED STREET LIGHT » ASL70
PRODUCTS
Message Board
    Message
    Same Series
    Product Features
    Applications
    Specification
    PRODUCT DISCRIPTION Size Lumen output Driver Weight
    Material: Die-casting aluminum housing size
    330*165*40mm
    ≥5000lm Linear scheme
    1.Qty5pcs/ctn 2.G.W.9.00KG 3.N.W.8.00KG

    Led type:SMD3030
    Power factor:0.9 Adapter size: 185*75*75mm
    Light effect:≥100lm/w
    Withstand Voltage:1.5KV  The whole lamp size: 500*165*75mm
    Surge:4KV
    Luminaire tilt adjustment side entry: -15°to+15° Color box Size: 430*214*75mm
    Cable:1M exposed,0.75mm²
    Voltage:AC200-260V 50/60HZ Packing size
    455*390*230mm
    IP Rating: IP65
    Installation pole diameter: 60mm
    Storage Temperatures:  -40°C~50°C
    Warranty: 2years
