Product Features
1、Chip imported from taiwan. low power consumption, high efficiency, long service life.
2、Body material:high quality aluminum die casting, corrosion resistant, anti-cracking. non fading color by stoving varnish.
3、High purity aluminum radiator, severe convection design ensures excellent heat dissipation and long light source service life.
4、High strength toughened glass with good transparency.
5、Casting glue ensures excellent waterproof performance of driver, intelligent control circuit. overvoltage and undervoltage protection.
6、Environmental protection, (no pollution tno lead & mercuryl), no radiation. favorable to recycle.
Applications
1、Widely used in building facades, plaza, garden landscape, golf courses, villas, farms and other outdoor places.
Specification
Model No. |
Power |
Size(L*W*H) (mm) |
Input Voltage |
Luminous Efficacy (lm/w) |
Power Factor |
Color Temperature |
CRI(Ra) |
Beam Angle |
IP Grade |
Life Span |

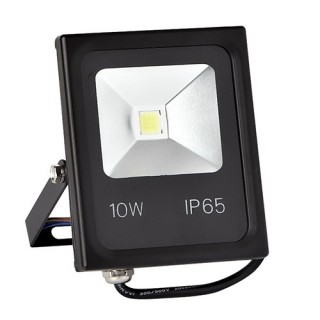

AF08-10W |
10W |
130*110*40 |
AC 85-265V |
80-90Lm/W |
>0.9 |
2700-7000K |
>70 |
120° |
65 |
>50000Hrs |
