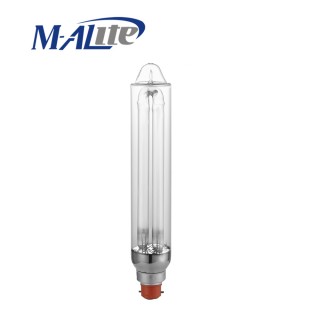

Home » PRODUCTS » Low Pressure Sodium Lamp » SOX-E 18W
PRODUCTS
Message Board
    Message
    Same Series
    Product Features
    Benefits
    • High luminous efficacy leads to low energy consumption
    Features
    • Uniform sodium distribution in the discharge tube by means of dimples for a
    more stable
    discharge, higher efficacy and better lumen maintenance and lamp life
    • Monochromatic yellow color with non-existent color rendering
    Applications
    Road lighting, railway marshalling yards and crossings, airports, harbours and
    docks,
    quarries, foundries and rolling mills
    Specification

    Mercury (Hg) Content (Nom) 0 mg

    Cap-Base BY22D

    Bulb Temperature (Max) 150 °C

    Correlated Color Temperature (Nom) 1800 K

    Life To 30% Failures (Nom) 8000 h

    Life To 40% Failures (Nom) 10000 h

    Life To 8% Failures (Nom) 6000 h



    Data

    Product name

    MASTER SOX-E 18W BY22d

    MASTER SOX-E 26W BY22d

    MASTER SOX-E 36W BY22d

    MASTER SOX-E 66W BY22d

    MASTER SOX-E 91W BY22d

    D(Max)

    53mm

    53mm

    53mm

    66mm

    66mm

    C(Max)

    216 mm

    311 mm

    425 mm

    525 mm

    765 mm

    Energy Consumption kWh/1000h

    20kWh

    29kWh

    40kWh

    72kWh

    100kWh

    Energy Efficiency Label(EFL)

    A+

    A++

    A++

    A++

    A++

    Lamp Current (Nom)

    0.33 A

    0.37 A

    0.32 A

    0.6 A

    0.46 A

    Voltage (Nom)

    57 V

    69 V

    120 V

    123 V

    173 V

    Power (Rated) (Nom)

    18 W

    27 W

    36 W

    65 W

    91 W

    Operating Position

    H110

    H110

    P20

    P20

    P20

    Lumen Maintenance

    2000h (Nom)

    95%

    95%

    100%

    100%

    100%

    Lumen Maintenance

    5000 h (Nom)

    90%

    95%

    95%

    100%

    100%

    Luminous Efficacy

    (rated) (Nom)

    100 lm/W

    140 lm/W

    164 lm/W

    170 lm/W

    192 lm/W

    Luminous

    Flux (Nom)

    1800 lm

    3700 lm

    6100 lm

    11000 lm

    17400 lm

    Bulb Shape

    T53

    T53

    T53

    T66

    T66
