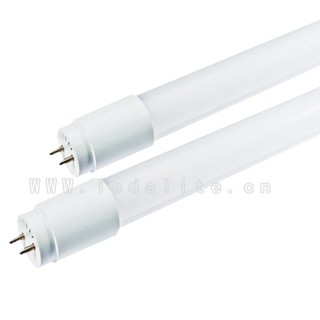

Home » PRODUCTS » LED LIGHT SOURCE » LED TUBES » LED Nanometer material T8
PRODUCTS
Message Board
    Message
    Same Series
    Product Features
    1.Nano material tube products using nanoscale particles of light guide, light more evenly, LED light is no longer dazzling, more in line with people's natural habits survey;
    2."Refractory", is refers to the product is not easy to be deformed by heat and light body, thoroughly changed the current ordinary full plastic pipe Kiu deformation disadvantage;
    3."extrusion resistance" is refers to the nano lamp has high compressive ability. Compared with the traditional glass tube can reduce the LED lamps and lanterns in the long-distance transportation process due to the extrusion damage lead to unnecessary loss of funds;
    4.tube is also provided with a convection hole, the discharge lamp in the residual heat, has excellent heat conducting performance, in terms of cost than the traditional LED lamp glass more cost-effective;
    5.In addition, the micro nano LED lamp light at a rate above 92%, soft lighting, environmental protection, eye protection. Soft light, no stroboscopic, no glare more conducive to the protection of the eyes, quiet and no noise, for the library, offices, classrooms, hospitals, factories and other places; will not produce ultraviolet light, to the skin without harm, not recruit mosquito; wide voltage input design, to reduce the impact of voltage, frequent switch does not cause damage
    Applications
    Size Chart
    Specification

    Products

    9W

    18W

    24W

    Item No.

    GET8-N60-9W

    GET8-N120-18W

    GET8-N150-24W

    Length (mm)

    589

    1198

    1498

    Voltage(V)*

    AC185-265V

    AC185-265V

    AC185-265V

    Power(W)

    9

    18

    24

    Pf*

    0.60

    0.60

    0.60

    Output Voltage V)

    DC72-80V

    DC72-80V

    DC72-80V

    Lumen(Minimum)

    765lm

    1530lm

    2040lm

    Ra*

    >70

    >70

    >70

    Angle

    120-160°

    120-160°

    120-160°

    LED Type

    SMD2835

    SMD2835

    SMD2835

    CCT*

    3000K/4500K/6000K

    3000K/4500K/6000K

    3000K/4500K/6000K

    Housing

     nanometer material

    nanometer material

     nanometer material

    PC Type

    Milky,Clear

    Milky,Clear

    Milky,Clear

    Cab

    G13

    G13

    G13

    IP Rating

    IP20

    IP20

    IP20

    Operating Tem.

    -20-40

    -20-40

    -20-40

    Certificate

    CE,RoHs,PSE

    CE,RoHs,PSE

    CE,RoHs,PSE

    N.W.

    120g

    280g

    360g
